RSF-Supermini

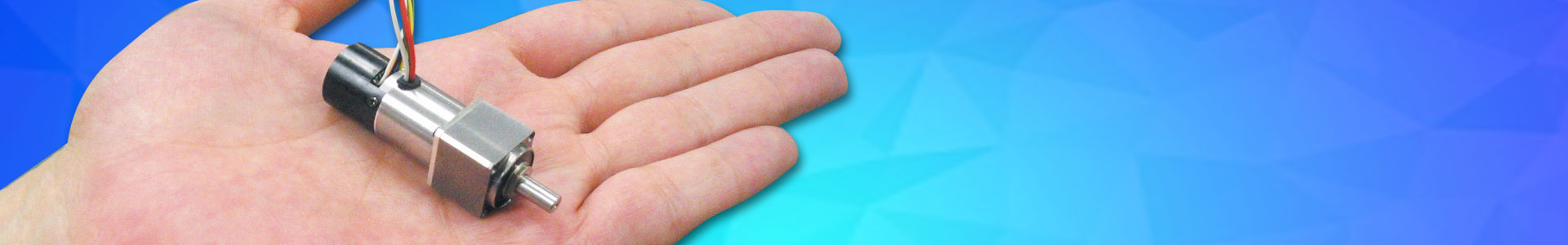

These extremely small servo actuators utilize zero backlash Harmonic Drive® precision gears, a brushless servo motor and an incremental encoder to deliver precision motion control. The RSF Supermini series is designed to operate with a wide range of third party drivers as well as Harmonic Drive LLC’s DCJ Series, DDP Series, DEP Series, and HA680 drivers. The units are small enough to fit inside the finger of a robotic hand.

Key Features:

Compact, lightweight
High output torque
High positional accuracy
RSF-5B is available with an optional brake

Manual

DXF CAD Files

PDF Drawings

3D CAD Files

Don't see what you need or not sure where to start?

Our team can help you find the right actuator for your application!

Ordering Code

RSF	-	5B	-	50	-	US	050	-	C	-	SP
1		2		3		4	5		6		7

1.	Model	: RSF-Supermini Series

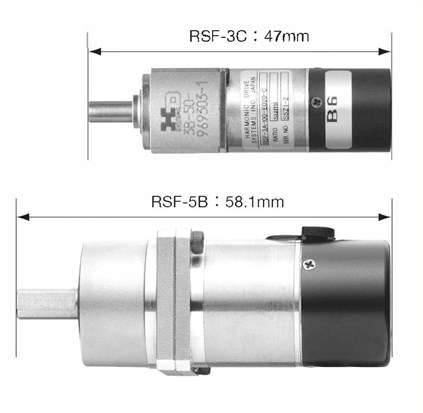

2.	Size / Version	: 3C, 5B
3.	Gear Ratio	: 30, 50, 100
4.	Encoder Type	: US - Incremental encoder
5.	Encoder Resolution	: 020 - 200 line (size 3C) : 050 - 500 line (size 5B)
6.	Options	: C - Standard - with connectors : BC - With Brake and connectors (available for 5B only)
7.	Special specification	: Blank - Standard product : SP____ - Special specification code

Specifications

Item / Model		RSF-3C			RSF-5B
Gear Ratio		30	50	100	30	50	100
Rated Torque	Nm	0.03	0.07	0.11	0.18	0.29	0.44
Rated Torque	lb-in	0.27	0.62	0.97	1.6	2.6	3.9
Rated Speed	rpm	150	90	45	150	90	45
Stall Torque	Nm	0.04	0.08	0.12	0.28	0.44	0.65
Stall Torque	lb-in	0.35	0.71	1.06	2.5	3.9	5.8
Maximum Torque	Nm	0.13	0.21	0.3	0.5	0.9	1.4
Maximum Torque	lb-in	1.15	1.86	2.66	4.4	8	12.4
Moment of Inertia (GD²/4) *1	Standard (kgm²)	0.11x10^-4	0.29x10^-4	1.17x10^-4	0.66x10^-4	1.83x10^-4	7.31x10^-4
Moment of Inertia (GD²/4) *1	With Brake (kgm²)	None	None	None	0.11x10^-3	0.31x10^-3	1.23x10^-3
Encoder Resolution *2	Pulses/Rotation	24,000	40,000	80,000	60,000	100,000	200,000
One-way Positioning accuracy	arc/sec	600	600	600	240	180	180
Number of Poles		8			8
Mass (g)	Without Brake(g)	31.0 (except clamp filter)			66.0 (except clamp filter)
Mass (g)	With Brake(g)	-			86.0 (except clamp filter)
Recommended Drivers	24V DC	DCJ-055-09, DDP-090-09, DEP-090-09
Recommended Drivers	24V DC	HA-680-4B-24			HA-680-4B-24
CAD Downloads		PDF DXF			PDF DXF

*1 – Values represent the inertia at the output shaft of the actuator
*2 – Resolution = (encoder resolution) x 4 x (gear reduction ratio)
